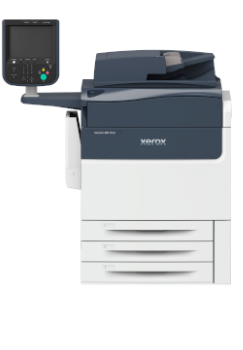

Xerox^® Versant^® 280 Press

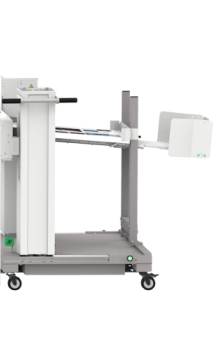

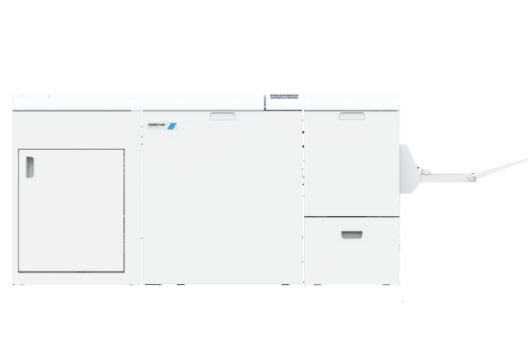

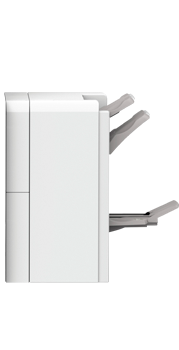

Booklet making with Business Ready Finisher features

• 500 sheet top tray, 1,500 sheet stack tray
• Saddle-stich booklets up to 64 pages (16 sheets / 90 gsm uncoated – 7 sheets / to 176 gsm coated).
• Booklets on uncoated and coated stocks to 300 gsm, max sheet 13” x 18” (330mm x 457.2mm)
• Half-fold up to 5 sheets on 220 gsm

** Heavyweight media from the Versant Tested Substrate List (TSL)

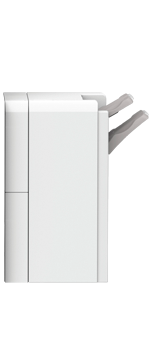

The BR Finisher is designed for customers who have lighter finishing needs featuring basic stapling and hole punching.

• Offsetting
• 2/3 hole punching
• Staple up to 50 sheets - front, rear, dual and four-position
• Top Tray: 500 sheets, Stacker Tray 3,000 sheets of up to 400gsm**
• 13.0” x 19.2” (330 mm x 488 mm) to 8.0” x 7.17” (203 mm x182 mm)

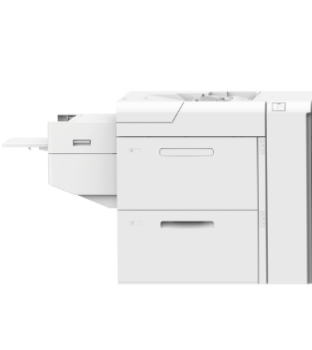

A single 5,000-sheet offsetting output stack tray with a 500-sheet purge tray

• Stacking a maximum of 5,000 sheets (based on 80 gsm centerline paper) and offsetting the output in the stack tray/cart
• Accommodates weights of 55 gsm up to 400 gsm /145 lb cover** both coated and uncoated. Stacking support from 8.0” x 7.2” and up to 13” x 19.2” (B5 LEF to SRA3).
• Available in a Single configuration
• Moveable cart included for off-line finishing
• Additional carts available.

** Heavyweight media from the Versant Tested Substrate List (TSL)

A tray that can hold up to 500 sheets of paper and allows each document set to be offset from other printed sets for easy separation and handling.

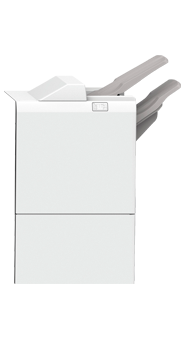

Ensures consistent high-quality stapled sets for small or large documents with a variable-length stapler, single or dual stapling option, and a 100 sheet capacity:

• Stapled sheet sizes 7.2” x 5.7” (182 x 146 mm) to 11.7” x 17.0” (297 mm x 432 mm)
• Handles paper weights 52-350 gsm uncoated or 72-350 gsm coated for stapling
• Stacker Tray holds up to 3,000 sheets and can handle sizes from 5.83” x 5.75” (148 mm x 146 mm) to 13.0” × 19.2” (330.2 × 488 mm)
• Top Tray holds 500 sheets
• Stacker and Top Tray can stack up to 400 gsm/ 145 lb cover**

** Heavyweight media from the Versant Tested Substrate List (TSL)

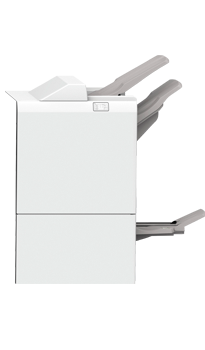

The Production Ready Booklet Maker Finisher adds basic booklet making capability to the features of the Production Ready Finisher.

• Creates stapled booklets up to 30 uncoated sheets (120 imposed pages at 90 gsm)/ 25 sheets coated sheets (100 imposed pages at coated 90gsm)
• Creates booklets from standard sizes: 12” x 18” (SRA3), 11” x 17” (A3), 8.5” x 14” and 8.5” x 11” (A4)
• Custom sizes range from 7.17” x 10.1” (182 mm x 257 mm) up to 13.0 × 19.21” (330.2 mm x 488 mm)
• Handles paper weights 60-350 gsm uncoated or 106-350 gsm coated for booklet making
• Features an output booklet stacking capacity of 2,000 sheets or 3,000 regular sheets. Regular sheets can stack up to 400gsm**
• Top Tray holds 500 sheets and up to 400gsm/ 145 lb cover**

** Heavyweight media from the Versant Tested Substrate List (TSL)

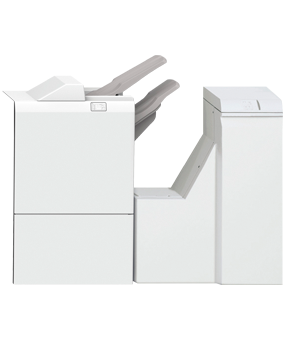

The Production Ready Finisher Plus provides the same functions as the Production Ready Finisher, although stack tray capacity is reduced from 3,000 sheets to a maximum of 2,000 sheets.

• In addition, this unit adds a Finishing Transport Module which enables connection to our Finishing Partner Solutions

This punch option can be configured inside all of the Production Ready Finishers:

• Options include 2/3 hole, 2/4 hole, and Swedish style 4 hole punch
• Using standard or custom sizes 8.0” x 7.2” (203 mm x 182 mm) to 11.69” x 17.0” (297 mm x 431.8 mm) for 2 hole, 10.0” x 7.2” (254 mm x 182 mm) to 11.69” x 17.0” (297 mm x 431.9 mm) for 3 hole, and 10.5” x 7.2” (267 mm x 182 mm) to 11.69” x 17.0” (297 mm x 431.8 mm) for 4 hole on uncoated and coated stocks up to 220 gsm

An optional Folder unit that produces Z-fold, C-Fold, and Engineering Z-Fold. This module can be added to any of the Production Ready Finishers.

• Produces sheets with a C Fold or Z Fold, on letter stock (8.5” x 11” or A4)
• Produces an Engineering or Half Z Fold on larger stock; This type of Z fold places a fold on 11” x 17” or A3/B4 paper, and reduces the sheet to 8.5 x 11” or A4 size
• Handles uncoated paper 60-90 gsm

GBC^® AdvancedPunch™ Pro goes a step beyond simply punching inside the press delivering production power, speed and larger sheet options.

• Combines printing and punching/collating into one easy process for submission to near-line coil and comb bound applications
• Delivers full bleed processing for applications such as calendars and photo books in common sizes including SRA4, SRA3, oversized letter and 12” x 18”
• Provides automatic die detection & cycle count for monitoring purposes
• Offers optional interchangeable die sets for popular binding styles (comb, wire, coil, GBC VeloBind^® and 3–7 hole varieties)
• Operates at rated print engine speed for most paper sizes
• Punches a variety of sheet sizes and weights up to 110lb Cover (300 gsm)
• Enables tab punching without the use of an inverter module

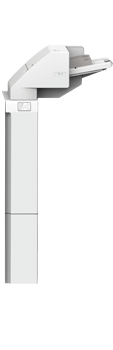

This module inserts preprinted or blank media into printed documents. Innovative design places it upfront to enable other finishing on inserted sheets, such as trimming, punching, folding, and stapling.

• Tray capacity: 250 sheets
• Smallest Sheet Size: 7.2” x 5.8” (182 mm x 148 mm)/A5L
• Largest Sheet Size: 13.0” x 19.2” (330 mm x 488 mm)
• Paper Weights: 52-400**

** Heavyweight media from the Versant Tested Substrate List (TSL)

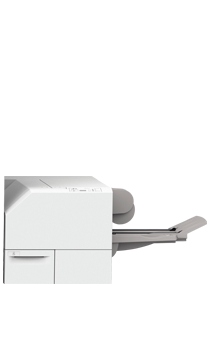

Produces professional square-fold booklets quickly and easily to give documents a more professional, finished look

• The Square-Fold Trimmer attaches neatly to the end of the Production Ready Booklet Maker Finisher and provides an inline square fold and face trim
• Flattens the booklet spine thereby reducing the booklet’s thickness and giving it the appearance of a perfect-bound book
• Accepts booklets up to 30 folded sheets directly from the finisher
• Trims 2-20 mm from the fore edge of the booklet
• Standard Paper Sizes: 12” x 18” (SRA3), 11 x 17” (A3), 8.5 x 14” and 8.5 x 11” (A4).
• Custom Paper Sizes: 7.17” x 10.12” (182 mm x 257 mm / B5S) up to 13.0” × 19.2” (330.2 mmm x 488 mm)
• Produces a full-bleed image when combined with the Crease and Two-side Trimmer

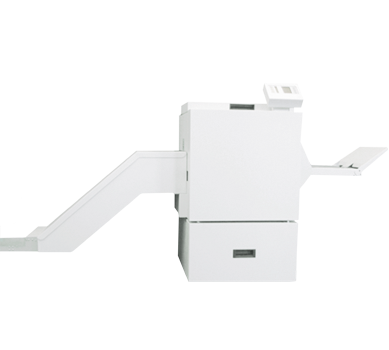

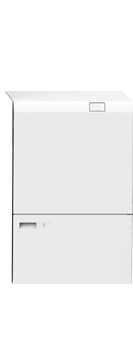

Trims 6-25 mm from the head and foot of prints or booklets to produce an even edge and creased spine:

• When paired with the Square-Fold Trimmer Module, all sides of booklets are trimmed except the binding, which enables full-bleed booklets
• Trims sheet sizes: 7.7” x 8.3” (194 mm x 210 mm) to 13.0” x 19.21” (330.2 mm x 488 mm)
• Trims booklet sizes 7.17” x 10.1” (182 mm x 257 mm) to 13.0” x 19.21” (330.2 mm x 488 mm)
• Up to 5 custom creases across sheet
• Handles uncoated paper 52-350 gsm and coated paper 106-350 gsm for trimming and/or creasing
• Bypass to other finishers up to 400gsm
